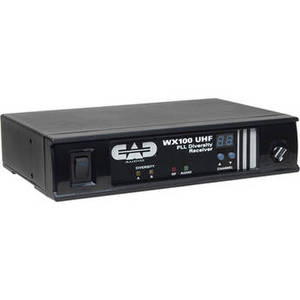

WX100A UHF Wireless Microphone Receiver
From CAD | Model #: CAWX100A
4,979 Points
See more in Electronics
From CAD | Model #: CAWX100A
4,979 Points
See more in Electronics
Product Description
The CAD WX100A UHF Wireless Microphone Receiver was designed to ensure the highest standards in connectivity in the most congested RF environments. The WX100A features an intuitive control scheme that allows easy operation by casual non-professional users. These designs along with an array of useful accessories make the WX100A a perfect solution for A/V suites, flexible meeting spaces or any situation that requires easy to use, reliable wireless.
| Maximum Output Level | Balanced output: -10 dBV Unbalanced output: 10 dBV |
| Output Impedance | Balanced output: 200 ohms Unbalanced output: 100 ohms |
| RF Bandwidth | 38.4 MHz |
| Switchable Frequencies | 16 |
| RF Sensitivity | 95 dBm, > 75 dB S/N |
| Image Rejection | > 85 dB |
| Squelch | Noise squelch and tone squelch |
| Diversity Method | True spatial diversity |
| Dimensions | 7.9 x 5.0 x 1.75" (200 x 150 x 44 mm) |
| Net Weight | 1.3 lb (0.6 kg) |
