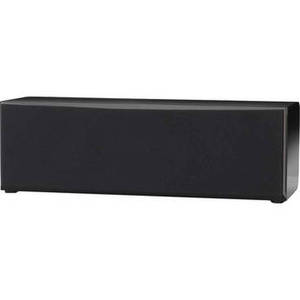

Studio 225C 2.5-Way Dual 4" Center Channel Speaker (Black)
From JBL | Model #: JBS225CB

4,871 Points

See more in Electronics




Studio 225C 2.5-Way Dual 4" Center Channel Speaker (Black)
Product Description

The black JBL Studio 225C center channel speaker is designed for use in a multi-channel audio system. This center channel speaker has a 2.5-way design that incorporates a 1" CMMD Lite dome tweeter and dual 4" PolyPlas woofers. With a recommended power handling of 20 - 125W , the JBL Studio 225C is compatible with a wide range of audio signals and power amplifiers.

The JBL Studio 225C features a rear-firing bass port with a slipstream designed enclosure for reduced port noise and distortion. To help the speaker remain sturdy, four rubber cushion pads are included. The JBL Studio 225C features gold-plated binding-posts that provide high-quality a high-quality connection between the center channel speaker and your connected equipment.
Speaker
Speaker Design Center Channel
Recommended Amplifier Power 20 - 125 W
Impedance 8 Ohms
Frequency Response 60 Hz - 22 kHz
Sensitivity 88 dB
Enclosure Slipstream rear-firing bass port
Drivers
Tweeter 1x 1" (25 mm) CMMD Lite high-frequency dome
Woofer 2x 4" (102 mm) PolyPlas low-frequency transducer
General
Configuration 2.5-Way
Speaker Connectors Gold-plated binding-posts
Dimensions (H x W x D) 6.5 x 21.1 x 7.4" (16.5 x 53.6 x 18.8 cm)
Weight 17.4 lb (7.9 kg)
