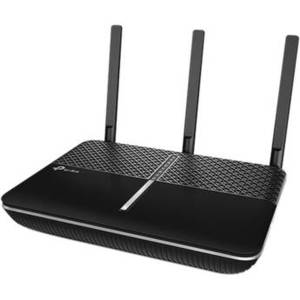

Archer C2300 Wireless-AC2300 Dual-Band Gigabit Router
From TP-Link | Model #: TPAC2300
3,300 Points
See more in Electronics
From TP-Link | Model #: TPAC2300
3,300 Points
See more in Electronics

Product Description
Enhance your network with the Archer C2300 Wireless-AC2300 Dual-Band Gigabit Router from TP-Link. With this router you benefit from enhanced wireless connectivity thanks to the three dual-band antennas supporting MU-MIMO technology offering 3x3 connectivity. In addition to the antenna array, users also benefit from Range Boost technology which helps to expand coverage to hard-to-reach areas of your home or office.
Once configured, the Archer C2300 supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies with data transfer rates of up to 2300 Mbps. For a wired alternative, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports. Additionally, dual USB ports allow USB enabled peripherals to be connected to the network making devices such as USB hard drives accessible throughout the network.
The Archer C2300 offers a wealth of network features designed to further enhance your network experience. You can manage various aspects of your network using the intuitive web user interface along with the ability to power the Wi-Fi signal and the router on or off when needed. You can also secure your network with access control, guest network access, parental controls, and WPA/WPA2 encryption.
Once configured, the Archer C2300 supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies with data transfer rates of up to 2300 Mbps. For a wired alternative, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports. Additionally, dual USB ports allow USB enabled peripherals to be connected to the network making devices such as USB hard drives accessible throughout the network.
The Archer C2300 offers a wealth of network features designed to further enhance your network experience. You can manage various aspects of your network using the intuitive web user interface along with the ability to power the Wi-Fi signal and the router on or off when needed. You can also secure your network with access control, guest network access, parental controls, and WPA/WPA2 encryption.
Hardware | |
Ethernet Ports | 4 x Gigabit Ethernet LAN ports 1 x Gigabit Ethernet WAN port |
USB Ports | 1 x USB 3.0 port 1 x USB 2.0 port |
Buttons | Wireless On/Off Button Power On/Off Button Reset Button WPS Button |
Antennas | 3 x Dual-band antennas |
External Power Supply | 12 VDC / 3.3 A (US version) |
Wireless | |
Wireless Standards | 5 GHz: IEEE 802.11ac/n/a 2.4 GHz: IEEE 802.11b/g/n |
Frequency | 2.4 GHz & 5 GHz |
Signal Rate | 5 GHz: 1625 Mbps 2.4 GHz: 600 Mbps |
Transmit Power | CE: <13.5 dBm (2.4 GHz), <16.5 dBm (5 GHz) FCC: <25 dBm (2.4 GHz), <24 dBm (5 GHz) |
Reception Sensitivity | 5 GHz 11ac80M MCS11: -58 dBm, 11ac 80 M MCS0: -88 dBm 11ac40M MCS11: -61 dBm, 11ac 40 M MCS0: -91 dBm 11ac20M MCS11: -63 dBm, 11ac 20 M MCS0: -95 dBm 54M: -76 dBm, 6M: -95 dBm 2.4 GHz 11n40M MCS9: -63 dBm, 11n 40 M MCS0: -89 dBm 11n20M MCS8: -67 dBm, 11n 20 M MCS0: -92 dBm 54M: -75 dBm, 11M: -90 dBm, 6M: -93 dBm, 1M: -98 dBm |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | Enable/Disable SSID Broadcast, 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS, Wireless MAC Filter |
Other Specifications | |
Software | Quality of Service WMM, Bandwidth Control WAN Type Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), Bigpond Management Access Control, Local Management, Remote Management DHCP Server, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP, TP-Link Access Control Parental Control, Local Management Control, Blacklist, Whitelist Firewall Security DoS, SPI Firewall, IP and MAC Address Binding Protocols IPv4, IPv6 USB Sharing Supports Samba(Storage), FTP Server, Media Server, Printer Server Guest Network 2.4 GHz guest network x 1, 5 GHz guest network x 1 |
Certifications | CE, FCC, RoHS |
System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
Temperature & Humidity | Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -40 to 158°F / -40 to 70°C Operating Humidity 10 to 90% non-condensing Storage Humidity 5 to 90% non-condensing |
Dimensions | 8.5 x 6.4 x 1.5" / 215.8 x 163.8 x 38.5 mm |
Weight | Not specified by manufacturer |
