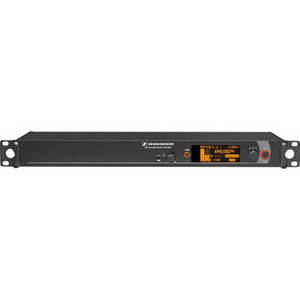

EM 2000 Professional True Diversity Wireless Microphone Receiver (Aw: 516 - 558 MHz)
From Sennheiser | Model #: SEEM2000A
36,047 Points
See more in Electronics
From Sennheiser | Model #: SEEM2000A
36,047 Points
See more in Electronics
Product Description
The Sennheiser EM 2000 Professional Wireless Microphone Receiver uses true diversity technology for superior performance with 5 windows of up to 75 MHz in the UHF range. Each transmitter (available separately) can be synchronized via infrared or connected to your network via Ethernet for remote monitoring and control with Sennheiser Wireless System Manager software. The Sennheiser EM 2000 ships with three power cords (EU, UK, and US), two rod antennas, and four self-adhesive device feet.
| RF Frequency Range | Aw: 516 - 558 MHz |
| Carrier Frequency | 3000 max |
| Presets | 64 max |
| Switching Bandwidth | 75 MHz max, tuneable in 25 kHz steps |
| Deviation | Nominal: �24 kHz Peak: �48 kHz |
| Squelch Threshold | Off, 5 to 25 dBμV, can be set in 2 dB steps |
| Intermodulation Spacing | ≥75 dB |
| Sensitivity | ≤2 μV (with HDX, peak deviation) |
| Adjacent Channel Rejection | ≥80 dB, typical |
| Blocking | ≥80 dB |
| Antenna Connector | 2 x BNC (50 Ohms) |
| Cascadable | 2 x BNC (50 Ohms) |
| Gain | 0 dB (�0.5 dB, based on antenna inputs) |
| Compander | HDX |
| Frequency Response | 25 Hz to 18 kHz |
| Signal-to-Noise Ratio (SNR) | >120 dBA |
| THD | <0.9% |
| Connector | 1 x XLR 2 x 1/4" / 6.35 mm |
| Audio Output Level | Audio Output Level: +18 dBu max Setting Range: 49 dB in 1 dB steps +6 dB gain reserve |
| Booster | Booster Feed: 12 VDC, 2 x 200 mA, short-circuit proof |
| Power | Power Supply: 100 to 240 VAC, 50/60 Hz Current Consumption: 0.2 A |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions (L x W x H) | 8.5 x 19.0 x 1.7" / 217.0 x 483.0 x 43.0 mm |
| Weight | 5.7 lb / 2.6 kg |
